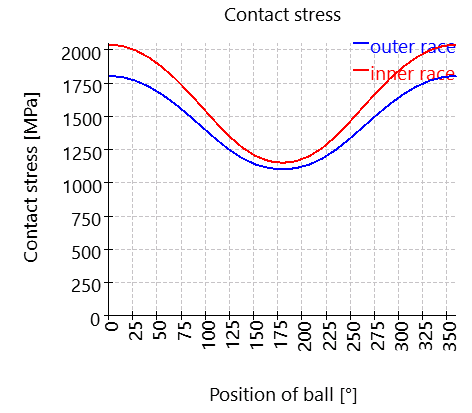

The contact stress can be shown in a diagram in addition to polar plot in Load distribution. In case of truncation for ball bearings an additional stress for the truncated contact is shown as dotted lines according to Frantz and Leveille.
