MESYS Calculation Software

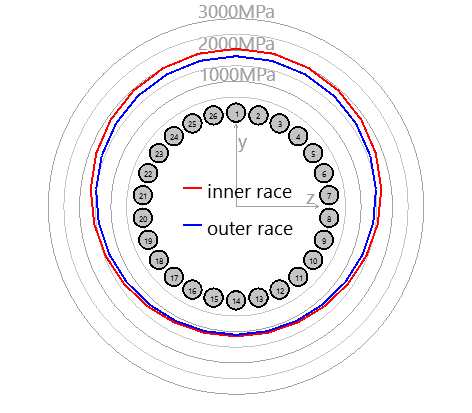

Here the contact stress of an angular contact bearing with radial and axial load and relatively high speed is shown. The contact stress is larger on the inner race (red) in the load zone but slightly larger on the outer race on the opposite side because of centrifugal loads.
